Description
Product Information

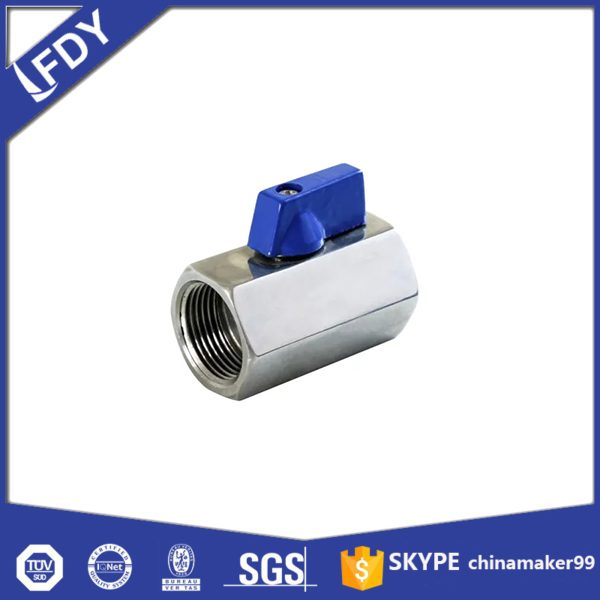

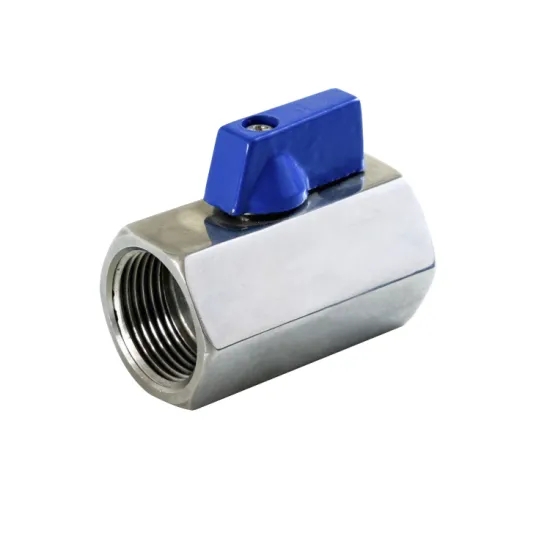

Serviceable Series: standard port 304/304L/316/316L stainless steel ball valve.
Body seal and Stem Seal are glass reinforced PTFE. Seats are RPTFE.
Pipe connections are NPT (National Pipe Taper)/BSP female screwed end.
Temperature Range -20°F to 400°F (-28.8°C to 204.4°C). Valve Body Pressure Rating 1,000 psi C.W.P.
Saturated Steam to 150 PSI and a Vacuum rating of 20 Microns. Self-compensating stem seal design.
Products are marketed per Valve Standard Terms & Conditions. All Valve Products MADE IN CHINA.
Valve operator is manual Stainless Steel Lever style handle with vinyl grip secured with locking stem nut.
Specification
| Sellable | Yes |
| Valve Type | Two-way, ON/OFF |
| Valve Style | MINI ball valve |
| Valve Size | 1/4”-4” |
| Valve Body Material | Stainless steel |
| Valve Temperature Range | -20°F to 400°F (-28.8°C to 204.4°C) |
| Valve Pressure Rating | 1,000 PSI C.W.P. (Cold Working Pressure), Saturated Steam 150 PSI |
| Application | Applied to stainless steel pipeline system, water system, petrolum system etc |
| Connection Ends | Socket weld or Threaded: NPT, BSP, BSPT etc. |
