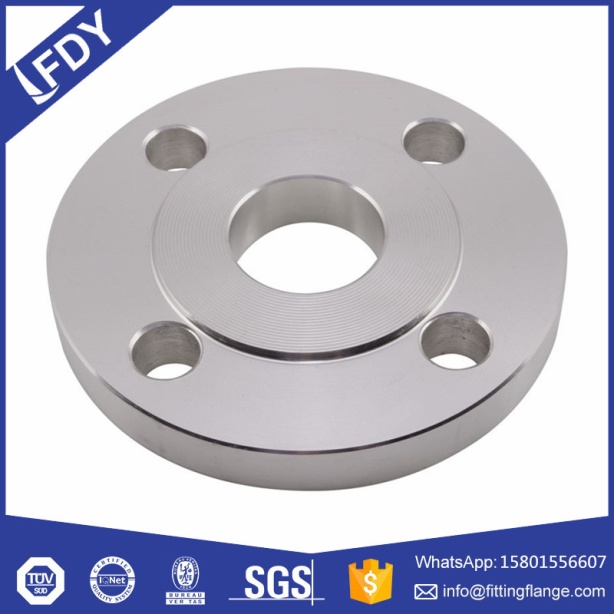

Items | Plate, Welding Neck, Slip on, Blind, Lap joint, Threaded Flange |
Standard | ANSI | ANSI B16.5 ASME B16.47 series A/B |
DIN | DIN |
GOST | GOST 12820-80 |
EN | EN1092-1:2002 |
JIS | JIS B2220-2004, KS D3576, KS B6216 KS B1511-2007 JIS B2261; JIS B8210 |
BS | BS4504 BS10 Table D/E |
Material | ANSI | CS A105/SA 105NSS 304/304L, 316/316L Alloy Steel: WHPY45/52/65/80 |
DIN | CS RST37.2;S235JR SS 304/304L,316/316L |
GOST | CS CT20;16MN;SS 304/304L,316/316L |
EN | CS RST37.2;S235JR;C22.8SS 304/304L,316/316L |
JIS | SS400,SF440 SS 304/304L, 316/316L |
BS | CSRST37.2;S235JR;C22.8;Q235SS 304/304L,316/316L |
Pressure | ANSI | Class 150, 300 |
DIN | PN6,PN10,PN16 |
GOST | PN6,PN10,PN16 |
EN | PN6,PN10,PN16 |
JIS | 1K,2K,5K,10K,16K,20K |
BS | PN6,PN10,PN16 |
Size | ANSI | 1/2” – 24” |
DIN | DN15-DN600 |
GOST | DN15-DN1600 |
EN | DN15-DN600 |
JIS | 15A-600A |
BS | DN15-DN600 |
Coating | Varnish, yellow paint, anti-rust oil, galvanizing etc |
Usage | Used for the connection of all kinds of pipeline to convey the water, steam, air, gas and oil |
Package | Wooden cases/pallets |
Delivery | Within 30 days |
Certificate | TUV, ISO9001:2008 |
