Title: A Comparative Analysis of Carbon Steel and Stainless Steel Flanges
Abstract
Flanges are critical components in piping systems, serving as connectors to join pipes, valves, and other equipment. The choice between carbon steel and stainless steel flanges hinges on factors such as mechanical properties, corrosion resistance, cost, and application requirements. This paper explores the fundamental differences between these two materials, examining their composition, performance characteristics, and practical applications to provide insights into optimal selection criteria.
1. Introduction
Flanges are essential in industrial settings for ensuring leak-free connections and structural integrity. Carbon steel and stainless steel are the most widely used materials for flanges, each offering distinct advantages. Carbon steel flanges are valued for their strength and affordability, while stainless steel flanges excel in corrosion resistance and hygiene. This paper evaluates their differences to guide engineers and designers in material selection.
2. Material Composition and Classification
2.1 Carbon Steel Flanges
Carbon steel primarily consists of iron (Fe) and carbon (C), with carbon content typically ranging from 0.12% to 2.0%. Other alloying elements like manganese (Mn), silicon (Si), and sulfur (S) may be present in small quantities. Common carbon steel grades for flanges include ASTM A105 and A350 LF2. These materials are categorized as low, medium, or high carbon steel based on carbon content, affecting their hardness and ductility.

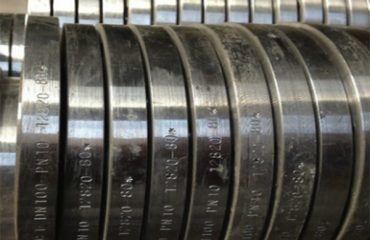

2.2 Stainless Steel Flanges
Stainless steel contains at least 10.5% chromium (Cr), which forms a passive oxide layer (Cr₂O₃) that protects against corrosion. Additional alloying elements like nickel (Ni), molybdenum (Mo), and nitrogen (N) enhance specific properties. Austenitic stainless steels (e.g., 304, 316) are non-magnetic and offer superior corrosion resistance, while ferritic (e.g., 430) and martensitic (e.g., 410) grades are magnetic but less corrosion-resistant.
3. Mechanical Properties
3.1 Strength and Hardness
Carbon steel flanges exhibit high tensile strength (400–600 MPa for A105) and yield strength (250–350 MPa), making them suitable for high-pressure applications. However, their hardness increases with carbon content, reducing ductility. Stainless steel flanges, such as 304, have lower tensile strength (515 MPa) but higher ductility, allowing for greater flexibility in design.
3.2 Temperature Resistance
Carbon steel flanges perform well in moderate temperature ranges (-20°C to 400°C) but may experience embrittlement at extreme cold or creep at high temperatures. Stainless steel, particularly grades like 316, maintains stability up to 870°C and resists thermal expansion, making them ideal for cryogenic or high-temperature environments.
4. Corrosion Resistance
4.1 Carbon Steel
Carbon steel is prone to oxidation and rust in moist or acidic environments. Without protective coatings (e.g., galvanization or painting), it degrades rapidly. For example, in marine applications, carbon steel flanges require frequent maintenance to prevent failure.
4.2 Stainless Steel
The chromium oxide layer in stainless steel provides passive corrosion resistance. Austenitic grades like 316, containing molybdenum, resist chloride-induced pitting and crevice corrosion, making them suitable for seawater or chemical processing. Ferritic grades offer less resistance but are cost-effective for less aggressive conditions.
5. Applications
5.1 Carbon Steel Flanges
Oil and Gas: Used in pipelines and refineries due to high strength and pressure tolerance.
Construction: Employed in structural supports and HVAC systems.
General Machinery: Common in low-cost, non-corrosive environments.
5.2 Stainless Steel Flanges
Food and Beverage: Sanitary design (e.g., 316L) prevents contamination.
Pharmaceuticals: Resists chemical cleaning agents and maintains sterility.
Marine and Offshore: Withstands saltwater corrosion in shipbuilding and offshore platforms.
6. Cost Considerations
Carbon steel flanges are generally cheaper than stainless steel alternatives. For example, an A105 flange may cost 30–50% less than a 304 stainless steel flange. However, stainless steel reduces long-term maintenance costs by eliminating the need for coatings or frequent replacements in corrosive environments.
7. Standards and Specifications
Both materials adhere to international standards. Carbon steel flanges comply with ASME B16.5 (pipe flanges) and ASME B16.47 (large-diameter flanges). Stainless steel flanges follow similar standards but often include additional requirements for alloy content (e.g., ASTM A182 for forged fittings).
8. Conclusion
Carbon steel and stainless steel flanges each have distinct roles in industrial applications. Carbon steel offers strength and economy but requires protection against corrosion. Stainless steel provides superior corrosion resistance and hygiene but at a higher initial cost. Engineers must balance performance, environment, and budget to select the optimal material. Future advancements in alloy design may further enhance their properties, expanding their usability in emerging industries.
